WPFのItemsControlでページャーを作ります。
ソースコード
ファイル名:PagerDemo.csproj
<Project Sdk="Microsoft.NET.Sdk">
<PropertyGroup>
<OutputType>WinExe</OutputType>
<TargetFramework>net10.0-windows</TargetFramework>
<Nullable>enable</Nullable>
<ImplicitUsings>enable</ImplicitUsings>
<UseWPF>true</UseWPF>
</PropertyGroup>
</Project>
ファイル名:Helpers\RoutedCommandHelper.cs
using System.Windows;
using System.Windows.Input;
namespace PagerDemo;
public static class RoutedCommandHelper
{
public static RoutedUICommand Create(
Window window,
string? name,
Action<ExecutedRoutedEventArgs> execute,
Func<bool>? canExecute = null,
Key? key = null,
ModifierKeys modifiers = ModifierKeys.None)
{
var cmd = name == null
? new RoutedUICommand()
: new RoutedUICommand(name, name, window.GetType());
ExecutedRoutedEventHandler exec = (_, e) =>
execute(e);
CanExecuteRoutedEventHandler can = (_, e) =>
e.CanExecute = canExecute?.Invoke() ?? true;
window.CommandBindings.Add(
new CommandBinding(cmd, exec, can));
if (key != null)
{
window.InputBindings.Add(
new KeyBinding(cmd, key.Value, modifiers));
}
return cmd;
}
}
ファイル名:Helpers\ViewModelBase.cs
// 汎用的な ViewModel 基底クラス実装。
using System.ComponentModel;
using System.Runtime.CompilerServices;
namespace PagerDemo;
public abstract class ViewModelBase : INotifyPropertyChanged
{
public event PropertyChangedEventHandler? PropertyChanged;
protected void OnPropertyChanged([CallerMemberName] string? name = null)
=> PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(name));
}
ファイル名:MainViewState.cs
using System.Collections.ObjectModel;
namespace PagerDemo;
public class MainViewState : ViewModelBase
{
public ObservableCollection<PagerItem> PagerItems { get; } = [];
public int PagerItemsMax { get; set;} = 0;
public int PagerItemsCurrent { get; set;} = 0;
}
ファイル名:MainWindow.xaml.cs
using System.Windows;
using System.Windows.Input;
namespace PagerDemo;
public partial class MainWindow : Window
{
public MainViewState State { get; } = new();
public RoutedUICommand NavigateCommand { get; private set; }
public MainWindow()
{
InitializeComponent();
NavigateCommand = RoutedCommandHelper.Create(
window: this,
name: "Navigate",
execute: Navigate);
DataContext = this;
this.Loaded += (sender, e) =>
{
// 初期値
SetCurrentValue(1, 20);
};
}
void SetCurrentValue(int value, int max)
{
State.PagerItems.Clear();
State.PagerItemsMax = max;
State.PagerItemsCurrent = value;
if (value <= 0 || max <= 0) return;
// --- 先頭 ---
State.PagerItems.Add(new PagerItem
{
DisplayName = "1",
Value = 1
});
if (max == 1) return;
// ページ数が少ない場合は全部表示
if (max <= 6)
{
for (int i = 2; i <= max; i++)
{
State.PagerItems.Add(new PagerItem
{
DisplayName = i.ToString(),
Value = i
});
}
return;
}
// -----------------------------
// 中央表示範囲の計算(最大5)
// -----------------------------
const int windowSize = 5;
int start = value - 1;
int end = value + 4;
// 左端補正
if (start < 2)
{
start = 2;
end = start + windowSize - 1;
}
// 右端補正
if (end > max - 1)
{
end = max - 1;
start = end - windowSize + 1;
}
// --- 中央ページ ---
for (int i = start; i <= end; i++)
{
State.PagerItems.Add(new PagerItem
{
DisplayName = i.ToString(),
Value = i
});
}
// --- 末尾 ---
State.PagerItems.Add(new PagerItem
{
DisplayName = max.ToString(),
Value = max
});
// -----------------------------
// 「...」補正
// -----------------------------
// 先頭側
if (State.PagerItems[1].Value != 2)
{
State.PagerItems[1].DisplayName = "...";
}
// 末尾側
int lastMiddleIndex = State.PagerItems.Count - 2;
if (State.PagerItems[lastMiddleIndex].Value != max - 1)
{
State.PagerItems[lastMiddleIndex].DisplayName = "...";
}
}
void Navigate(ExecutedRoutedEventArgs e)
{
var x = e.Parameter as PagerItem;
if (x is null) return;
//System.Diagnostics.Debug.Print($"{x.Value}");
SetCurrentValue(x.Value, State.PagerItemsMax);
}
}
ファイル名:PagerItem.cs
// ページャーの項目を表すクラス
namespace PagerDemo;
public sealed class PagerItem
{
public string DisplayName { get; set; } = "";
public int Value { get; set; } = 0;
}
ファイル名:MainWindow.xaml
<Window x:Class="PagerDemo.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:PagerDemo"
mc:Ignorable="d"
Title="PagerDemo" Height="200" Width="400">
<Grid Margin="8">
<ItemsControl
ItemsSource="{Binding State.PagerItems}"
HorizontalAlignment="Center"
VerticalAlignment="Top"
Height="24">
<ItemsControl.ItemsPanel>
<ItemsPanelTemplate>
<StackPanel Orientation="Horizontal"/>
<!-- ItemsControlの項目を水平方向に配置 -->
</ItemsPanelTemplate>
</ItemsControl.ItemsPanel>
<ItemsControl.ItemTemplate>
<DataTemplate>
<StackPanel Orientation="Horizontal">
<!-- ItemsControlのItemを水平方向に配置 -->
<!-- 区切り -->
<TextBlock Text=" "
Margin="3,0"
VerticalAlignment="Center" />
<!-- クリック可能なページャー要素 -->
<Button Content="{Binding DisplayName}"
FontSize="18"
Padding="2,0"
Margin="0"
Background="Transparent"
BorderThickness="0"
Cursor="Hand"
VerticalAlignment="Center"
Command="{Binding DataContext.NavigateCommand,
RelativeSource={RelativeSource AncestorType=ItemsControl}}"
CommandParameter="{Binding}" />
<!-- Command ItemsControlをソースに指定 -->
<!-- CommandParameter BreadcrumbItemとバインド -->
</StackPanel>
</DataTemplate>
</ItemsControl.ItemTemplate>
</ItemsControl>
</Grid>
</Window>
実行例

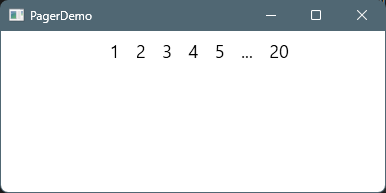

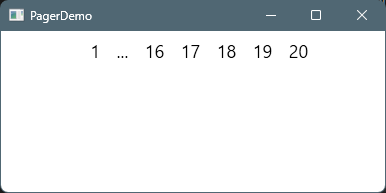

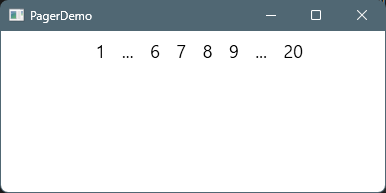

スクリーンショット



それらしく作ったつもりですが、「…」周りと、全体の件数がの制御がコントロールしきれていません。とりあえず動作に支障はなさそうです。
